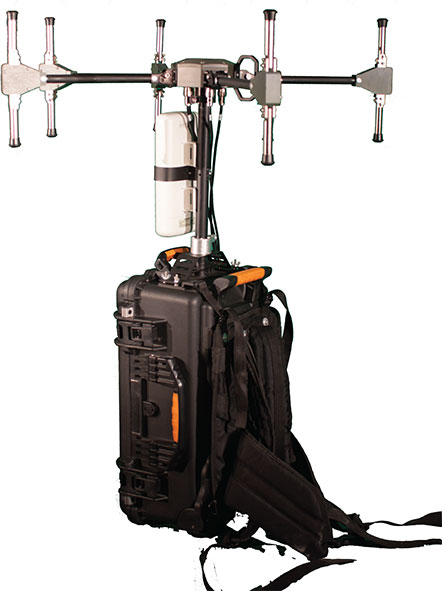

On The March Direction Finder
Model: IDF53Q2
Features
• Direction finding capability on the move by person
• High accuracy and search speed
• Variable modes, Fix Frequency mode, FFM, Wide Band Modes, WBM
• Coverage band ferequency 20MHz– 690MHz
• Bandwidth IF – 80MHz
• Scan speed 500MHz/sec
• New direction algorithm (SPARSE , IFDFC ,Watson Watt , SRDF)
• User connection with network and Wi-Fi
• Capability transmition data between several systems for position finding
• Display direction on the map
• Utilizing GPS, compass and modem for increased system capabilities
• 24hrs function with internal DC source and AC source
Model: IDF53Q2
Features
• Direction finding capability on the move by person
• High accuracy and search speed
• Variable modes, Fix Frequency mode, FFM, Wide Band Modes, WBM
• Coverage band ferequency 20MHz– 690MHz
• Bandwidth IF – 80MHz
• Scan speed 500MHz/sec
• New direction algorithm (SPARSE , IFDFC ,Watson Watt , SRDF)
• User connection with network and Wi-Fi
• Capability transmition data between several systems for position finding
• Display direction on the map
• Utilizing GPS, compass and modem for increased system capabilities
• 24hrs function with internal DC source and AC source
