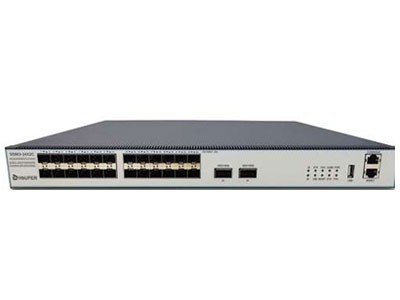

HOP5863-24X2c-24P10G-2P100G

The HOP5863-24X2c switch has 24 ports with 10G of capacity and 2 ports with 100G of capacity. The switch is made by HOUPER Company. It is one of the HOP5863 series core switches. It is a wonderful equipment that helps you manage large networks as much as possible. Support for elastic cumulative performance to achieve integrated management, upgrade and maintenance of several devices is a special service of this equipment. Redundancy in power and fan allows you to create an uninterrupted network. By placing this switch in the core layer of the network, you can manage your network with high security, performance, and easy configuration.

Specifications :

• Full optical port access, 24*10 Gigabit optical port access,2*40G or 100G optical ports uplink;
• Meet the needs of telecom operators for urban aggregation, enterprise networks, and data centers for ultra-high bandwidth Layer 2 and 3 forwarding applications;
• Support rich service features, L2,L3,MPLS,VxLAN,OAM/APSand other features
• Supports security and flow control features, hardware-based NetFlow, and high-precision clock features
• Support elastic stacking function to achieve unified management, upgrade and maintenance of multiple devices;
• Modular design of the whole machine, pluggable design of fans and power supply components;
• Support IPv4/IPv6 dual-stack platform, support RIP/OSPF/RIPng/OSPFv3/PIM and other routing protocols
• Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols;
• Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions
• Support Ethernet OAM 802.3ag(CFM),802.3ah(EFM) and other Ethernet link detection mechanisms
• Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication
• Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand
• Support IPv4/IPv6 static routing function;
• Support static and flexible QinQfunction;
• Support IPV4/6unicast routing in the policy, support flexible forwarding policy;
• Supports CLI command line management based on serial port, Telnet, and SSHv2 mode
• Support RFC1213 SNMP network management;
• Supports configuration management based on WEB pages;

Product Specifications:

• Physical Interface:

10 Gigabit optical port: 24*10 Gigabit optical ports, 10 Gigabit optical port adaptive connection Gigabit optical, type SFP/SFP+/LC;
Uplink optical ports: 2*40 uplink optical ports, type QSFP; or 2*100 uplink optical ports, type QSFP28;
Console port: manage serial port, used for command line management, type RS232;
AUX debug port: out-of-band management interface for Telnet/SSH/WEB login control, type RJ45;

Working environment:

Operating temperature: -15C~55C;
Storage temperature: -40C~70C;
Relative humidity: 10%~90%, non-condensing;

• Power consumption:

Power supply specifications: 1+1 redundant power supply, AC/DC optional;
Input power: AC: input 90~ 264V, 47 ~ 67Hz; DC: -36V~ -72V；
Power consumption of the whole machine: full load power consumption ≤ 125W, idle power consumption ≤25W;

• Mechanical structure:

Chassis shell: metal shell, air-cooled heat dissipation;
Power supply fan: modular design of power supply and fan, support hot swappable, support
fan speed control and alarm detection;
Chassis size: dimensions (length * width * height) (mm) 440 * 320 * 44;
Installation: Standard 19 inch 1U rackmount installation;
