HOP28116-IPTV standalone system
HOP28116-IPTV-standalone-system
Features:
- IP Gateway + IPTV server in one device
- Manage gateway and IPTV server separately
- HTTP, UDP, RTP, RTSP and HLS in→HTTP, UDP, HLS and RTMP out
- IPTV Functions: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS, and so on
- Adding scrolling caption, welcome words, pictures, advertisement, video, music in main interface
- TS files uploading through Web management
- IP anti- jitter function
- Downloading Houper IPTV APK directly from this device
- Support program playing with APK downloaded android STB and TV, maximum 150 terminals
- Control via web-based NMS management through DATA port

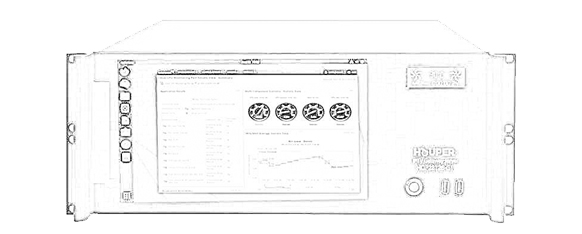

HOP28116 IPTV Gateway Server is the newest device which combined with IP Gateway and IPTV server in one unit. It is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol.
In addition, it integrates IPTV system and users can upload VOD source on it with huge memory. In conclusion, this full function device makes it ideal for small CATV head end system, especial in hotel TV system
IP Input
DATA CH 1-7(1000M) ports: IP input over HTTP, UDP(SPTS),RTP(SPTS),RTSP (over UDP, payload: mpeg TS) and HLS,TS files uploading through Web management
IP output
First Data port (1000M): IP out over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding), DATA CH 1-7(1000M) ports: IP out over HTTP/HLS/RTMP (Unicast)
System
Memory 4G 8G
CPU 1037 i5 i7
Solid-State Disk(SSD) 120G
Mechanical Hard Disk 4T
Channel switching time with HOUPER’ STB: HTTP (1-3s), HLS (0.4-0.7s)
Play programs with APK downloaded android STB and TV, maximum 150 terminals
