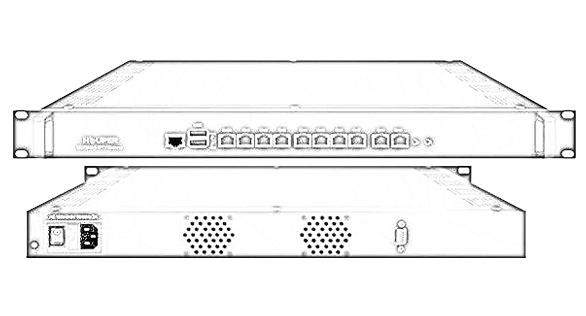

HOP28117-IPTV protocol conversion gateway

HOP28117-IPTV-Protocol-Conversion
Features:

  • First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
  • Data CH1-9 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
  • IP out over HTTP, HLS and RTMP (Unicast)
  • Support TS files uploading through Web management
  • Support IP anti- jitter function
  • Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Houper IPTV APK)
  • Support downloading Houper IPTV APK directly from this device
  • Support about 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization
  • Support program playing with APK downloaded android STB and TV, maximum 150 terminals
  • Control via web-based NMS management through DATA port
This image for Image Layouts addon
HOP28117 IPTV Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol.
This image for Image Layouts addon
The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly.

Input
IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
TS files uploading through Web management

IP output
IP out thru Data port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)
IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast); IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast)

Demission 482mm×324mm×44mm (WxLxH)
Temperature 0~45℃(operation), -20~80℃(storage)
Power Supply AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Maximum 200 Terminals solution
