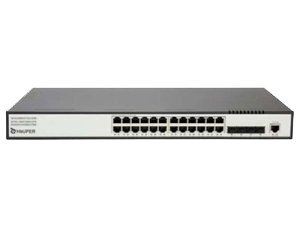

HOP5710-28TP-24xfull POE Gigabit Access-4x10 Gigabit Uplink Switch

HOP5710-28TP switch has 24 POE ports with 1G capacity and 4 ports with 10G capacity.  The switch is made by HOUPER Company, which is one of the HOP5710 series switches that is sold in the network equipment market. With new features, this model of switch optimizes capabilities such as high availability, scalability, security and energy efficiency, ease of operation and investment protection for growing business needs. This network switch has PoE+ capabilities, additional power and fan, stacking with high bandwidth and modular uplinks, and support layer 3 features.
Specifications :

  • 24 Gigabits (with PoE), supportIEEE 802.3af/atstandard, 10 Gigabit optical interface can beadapted to gigabit;
  • Ultra-high switching capacity, support full portwire-speed forwarding performance;
  • Weak Layer 3 access switch, support full port hardware Layer 3 wire-speed forwarding performance;
  • High-performance low-power network processor, support for green Ethernet line sleep capability, low devicepower consumption;
  • Support IPv4/IPv6 dual-stack platform, support RIP/OSPF/PIM and other routing protocols
  • Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols;
  • Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions
  • Support Ethernet OAM 802.3ag (CFM),802.3ah(EFM) and other Ethernet link detection mechanisms
  • Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication
  • Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand
  • Support IPv4/IPv6 static routing function;
  • Supports multi-port mirroring analysis and service flow-based image analysis.
  • Support static and flexible QinQfunction;
  • Support IPV4/6unicast routing in the policy, support flexible forwarding policy;
  • Supports CLI command line management based on serial port, Telnet, and SSHv2 mode
  • Support RFC1213 SNMP network management;
  • Supports configuration management based on WEB pages;
This image for Image Layouts addon
The switch is widely used to connect equipment that needs safe power supply. CCTV cameras of important places can turn into a reliable, safe, full-capacity, and high-quality infrastructure with the help of the switch.
This image for Image Layouts addon
In addition, the switch is very efficient for centers that have several clients such as industrial computers or integrated management systems. Among others, we can mention production lines, robotic command line, control equipment with POE power, health and nursing units, clean rooms, as well as telephone systems with VoIP- based network.
  • Product Specifications:

Physical Interface:
10 Gigabit optical port: 4*10 Gigabit optical ports, 10 Gigabit optical port adaptive connection Gigabit optical, type SFP/SFP+/LC;
PoE ports: 24 Gigabit ports with PoE, support IEEE 802.3af/at standard, type RJ45;
Console port: manage serial port, used for command line management, type RS232;

  • Working environment:

Operating temperature: -15C~55C;
Storage temperature: -40C~70C;
Relative humidity: 10%~90%, non-condensing;

  • Power consumption:

Power supply specifications: single AC power supply, fixed 400W power supply;
Input power: AC: input 90~264V, 47~67Hz;
Power consumption of the whole machine: full load power consumption ≤ 400W, idle power consumption ≤ 25W;

  • Mechanical structure:

Chassis shell: metal shell, air-cooled heat dissipation;
Chassis size: dimensions (length * width * height) (mm) 440 * 270 * 44;
Installation: Standard 19 inch 1U rack mount installation
