HOP3304P Cassette 4 ports EPON OLT with 4*10GE uplink

HOP3304P-4PEPON-4P10GE-OLT
Specifications :

  • Follow the IEEE802.3ahtechnical standard, follow the industry technical standard;
  • Meet the relevant requirements for EPON OLT equipment in "China Telecom EPON Equipment Technical Requirements3.0";
  • The device is open and compatible, highly reliable, and supports mixed networking of different types of ONUs
  • It is suitable for operator FTTH access, private network access, government and enterprise park access, campus network access and other access network construction;
  • Dual power supply design of the device, AC/DC can be flexibly selected, which is convenient for the application of equipment networking
  • Support IPv4/IPv6 dual-stack platform, support RIP/OSPF and other routing protocols
  • Support 1:64 splitting ratio, the whole machine supports 256 ONU access;
  • Support VRRP/ERPS/MSTP/Flex Link/Monitor Link and other link redundancy and network redundancy protocols;
  • Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions
  • Support Ethernet OAM 802.3ag (CFM),802.3ah (EFM) and other Ethernet link detection mechanisms
  • Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication
  • Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand
  • Support IPv4/IPv6 static routing function;
  • Supports multi-port mirroring analysis and service flow-based image analysis.
  • Support static and flexible Qin function;
This image for Image Layouts addon

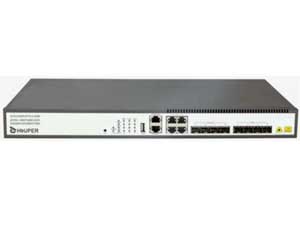

The HOP3304P device is an OLT control center with ePON technology for small projects. With 4 EPON ports and 4 10G uplinks and 4 1G copper uplinks and NMS, USB accesses, it enables a wide range of network features for various solutions. Houper OLT center is able to connect to various modems, switches and OLT with its reliability, stability and expandability.
This image for Image Layouts addon
It supports all standard OLT protocols and provides many fast and easy features for programming and configuring the device. Among its other advantages, there is the reliable redundant power. Its small dimensions makes it very suitable and economical for industrial, home, corporate and organizational projects.

Physical Interface:

EPON port: 4 EPON ports, type GEPON SFP;
Uplink ports: 4 Gigabit ports, Gigabit ports are adaptive 10/100/1000M, type RJ45;
Uplink optical port: 4*10 Gigabit optical ports, 10 Gigabit optical port support gigabit light, type SFP/SFP+/LC;
Console port: manage serial port, used for device command line management, type RS232;
AUX debug port: out-of-band management interface for device Telnet/SSH/WEB login control, type RJ45;
USB port: USB interface, for device software upgrade, configuration upload and download, authorization ukey, type USB2.0;
RST port: reset interface, for manual reset restart of the device;

Working environment:

Operating temperature: -15C~55C;
Storage temperature: -40C~70C;
Relative humidity: 10%~90%, non-condensing;

Power consumption:

Power supply specifications: 1+1 redundant power supply, AC/DC optional;
Input power: AC: input 100 ~ 240V, 47 ~ 63Hz; DC: 36V ~ 75V；
Power consumption of the whole machine: full load power consumption ≤38W, idle power consumption ≤ 25W;

Mechanical structure:

Chassis shell: metal shell, air-cooled heat dissipation;
Power supply fan: The power supply is modular design and supports hot swap. Two fixed fans;
Chassis size: dimensions (L* W * H) (mm) 440 * 200 * 44;
Installation: Standard 19 inch 1U rackmount installation;
