HOP28130-24DVB S-T-C to 3GE IP

HOP28130-24DVB-3GE-Gateway
Features:

  • Support 8 tuners (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T) input; 1 U chassis optional for 1/2/3 cards maximum for 8/16/24 tuner input; Each tuner card are working independently with its NMS and 1 GE Data port
  • 8 MPTS (8MPTS out thru bypassing) under Passthrough mode over UDP/RTP thru Data port, unicast/multicast-Version 1
  • 2 MPTS out after multiplexing or 512 SPTS out switchable under Mux mode over UDP/RTP thru Data port, unicast/multicast-Version 2
  • Up to 256 PIDs remapping per output channel (Mux mode only)
  • Support PID re-mapping and pass-through (Mux mode only)
  • Support Diseqc function (Mux mode only)
  • Support Biss decryption, each tuner support maximum 64 BISS key decryption (Mux mode)
  • Web-based NMS management
This image for Image Layouts addon

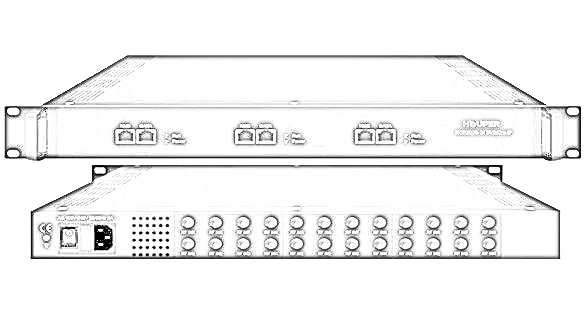

Houper HOP28130 is a DVB S2/T/C to IP MPTS device that enables conversion of DVB S2/T/C digital signals to IP MPTS format. DVB S2/T/C indicate satellite (DVB S2), digital terrestrial television (DVB T) and cable (DVB C).
This image for Image Layouts addon
In this process, digital signals received via satellite, terrestrial or cable are converted into IP MPTS format. With multiple and unique features, this device has 24 DVB inputs of different types, and a gigabit IP output. It is a unique and very cost effective IPTV solution for various projects including mega malls, residential buildings and cities.


Input / Output
8 Tuner input (DVB-S/S2/S2X or/and DVB-C/T/T2/ISDB-T), F Type
8 MPTS out thru bypassing over UDP/RTP thru Data port (Version 1)
100/1000Mself-adaption, unicast/multicast

Mux (Version 2)
Max number of managing PID: 256 (for 2 MPTS out thru multiplexing) or 512 SPTS out
Functions: PID remapping (automatically/ manually) , PID pass-through

System
Web management:100M NMS port
Ethernet software upgrade

General
Dimensions 482mm×328mm×44mm (WxLxH)
Weight 3.5kg
Temperature 0~45℃(operation), -20~80℃(storage)
Power supply AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz

Consumption
≤25W (1card inside)
≤50W (2 cards inside)
≤75W (3 cards inside)
