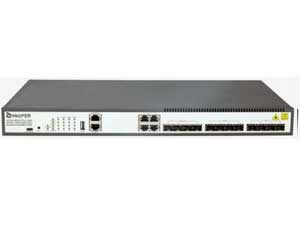

HOP3308P 8 EPON ports Cassette EPON OLT with 4*10GE uplink

HOP3308P-8PEPON-4P10GE-OLT
Features:

  • Follow the IEEE802.3ahtechnical standard, follow the industry technical standard;
  • The device is open and compatible, highly reliable, and supports mixednetworking of different types of ONUs
  • It is suitable for operator FTTHaccess, private network access, government and enterprise park access, campus network access and other access network construction;
  • Dual power supply design of the device,AC/DCcan be flexibly selected, which is convenient for the application of equipment networking
  • Support IPv4/IPv6 dual-stack platform, support RIP/OSPF and other routing protocols
  • Support 1:64 spectral ratio, the whole machine supports 512 ONU access;
  • Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols;
  • Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions
  • Support Ethernet OAM 802.3ag(CFM),802.3ah(EFM) and other Ethernet link detection mechanisms
  • Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication
  • Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand
  • Support IPv4/IPv6 static routing function;
  • Supports multi-port mirroring analysis and service flow-based image analysis.
  • Support static and flexible QinQfunction;
  • Supports CLI command line management based on serial port, Telnet, and SSHv2 mode
  • Support RFC1213 SNMP network management;
  • Supports configuration management based on WEB pages;
  • Support the whole machine power failure alarm function;
  • Support Type-C interface management;
Physical Interface:

EPON port: 8 EPON ports, type GEPON SFP;
Uplink ports: 4 Gigabit ports, Gigabit ports are adaptive 10/100/1000M, type RJ45;
Uplink optical port: 4 10 Gigabit optical ports, 10 Gigabit optical port support gigabit light, type SFP/SFP+/LC;
Console port: manage serial port, used for device command line management, type RS232;
AUX debug port: out-of-band management interface for device Telnet/SSH/WEB login control, type RJ45;
USB port: USB interface, for device software upgrade, configuration upload and download, authorization ukey, type USB2.0;
Type C interface: Type-C management interface for device command line configuration management, type Type C;
RST port: reset interface, for manual reset restart of the device;

Working environment:

Operating temperature: -15C~55C;
Storage temperature: -40C~70C;
Relative humidity: 10%~90%, non-condensing;

Power consumption:

Power supply specifications: 1+1 redundant power supply, AC/DC optional;
Input power: AC: input 100 ~ 240V, 47 ~ 63Hz; DC: 36V ~75V;
Power consumption of the whole machine: full load power consumption ≤ 49W, idle power consumption ≤ 25W;

Mechanical structure:

Chassis shell: metal shell, air-cooled heat dissipation;
Power supply fan: The power supply is modular design and supports hot swap. Three fixed fans;
Chassis size: dimensions (length * width * height) (mm) 440 * 260 * 44;
Installation: Standard 19 inch 1U rackmount installation;
