HOP3416P 16 GPON ports Cassette GPON OLT with 4*10GE uplink


  • Complies with ITU-TG.984/G.988standards;
  • The device is open and compatible, with strong compatibility and high reliability, and can be flexibly compatible with any brand ONT;
  • Ultra-high port density, support 16 GPON ports;
  • Support 1:128 spectroscopic ratio, the whole machine supports 2048 GPOON ONT access;
  • It is suitable for operator FTTH access, private network access, government and enterprise park access, campus network access and other access network construction;
  • Dual power supply design of the device,AC/DCcan be flexibly selected, which is convenient for the application of equipment networking
  • SupportSYPv4/IPv6 dual-stack platforms and IPv4/IPv6 static routing
  • Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols;
  • Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions
  • Support Ethernet OAM 802.3ag(CFM),802.3ah(EFM) and other Ethernet link detection mechanisms
  • Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication
  • Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand
  • SupportSYPv4/IPv6 dual-stack platforms and IPv4/IPv6 static routing functions
  • Supports multi-port mirroring analysis and service flow-based image analysis.
  • Support static and flexible QinQfunction;
  • Supports CLI command line management based on serial port, Telnet, and SSHv2 mode
  • Support RFC1213 SNMP network management;
  • Supports configuration management based on WEB pages;
  • Support the whole machine power failure alarm function;
  • Support Type-C interface management;
This image for Image Layouts addon

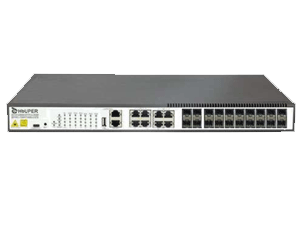

The HOP3416P device is an OLT control center with GPON technology for medium projects. With 16 GPON ports and 4 10G uplinks and 8 1G copper uplinks and NMS, USB accesses, it enables a wide range of network features for various solutions. Houper OLT center is able to connect to various brands of modems, switches and OLT with its reliability, stability and expandability.
This image for Image Layouts addon
It supports all standard OLT protocols and provides many fast and easy features for programming and configuring the device. Among its other advantages, there is the reliable redundant power. Its small dimensions makes it very suitable and economical for industrial, home, corporate and organizational projects.
Physical Interface:
  • GPON ports: 16 GPON ports, type GPON SFP;
  • Uplink ports: 8 Gigabit ports, Gigabit ports are adaptive 10/100/1000M, type RJ45;
  • Uplink optical port: 4*10 Gigabit optical ports, 10 Gigabit optical port support gigabit light, type SFP/SFP+/LC;
  • Console port: manage serial port, used for device command line management, type RS232;
  • AUX debug port: out-of-band management interface for device Telnet/SSH/WEB login control, type RJ45;
  • USB port: USB interface, for device software upgrade, configuration upload and download, authorization ukey, type USB2.0;
  • Type C interface: Type-C management interface for device command line configuration management, type Type C;
  • RST port: reset interface, for manual reset restart of the device;
Power consumption:
  • Power supply specifications: 1+1 redundant power supply, AC/DC optional;
  • Input power: AC: input 100 ~ 240V, 47 ~ 63Hz; DC: 36V ~ 75V;
  • Power consumption of the whole machine: full load power consumption ≤65W, idle power consumption ≤ 25W;
Mechanical structure:
  • Chassis shell: metal shell, air-cooled heat dissipation;
  • Power supply fan: The power supply is modular design and supports hot swap. Three fixed fans;
  • Chassis size: dimensions (length * width * height) (mm) 440 * 260 * 44;
  • Installation: Standard 19 inch 1U rackmount installation;
