HOP5750-30TP- 24 POE 2.5G - 6 Port 10G uplink switch

HOP5750-30TP-24POE2.5G-6P10G

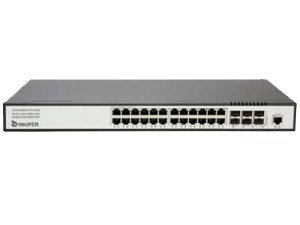

The HOP5750-30TP switch has 24 POE ports with 2.5G of capacity and 6 ports with 10G of capacity. The switch is manufactured by HOUPER Company. It is one of HOP5750 series switches. This model of switch allows you to connect up to 2.5 Gig POE in each port. It is a wonderful switch which provides you with an uninterrupted network. It has a very low power consumption and very high performance. It can support all kinds of network protocols. Remote switch configuration and management is one of its features.
  • Specifications :
  • 24 *2.5Gports (with PoE), supportIEEE 802.3af/atstandard,10 Gigabit optical ports can be adaptive to Gigabit;
  • Ultra-high switching capacity, support full port wire-speed forwarding performance;
  • Support weak Layer 3 access, support full port hardware Layer 3 wire-speed forwarding performance;
  • High-performance low-power network processor, support for green Ethernet line sleep capability, low device power consumption;
  • Support IPv4/IPv6 dual-stack platform, support RIP/OSPF and other routing protocols
  • Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols;
  • Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions
  • Ethernet OAM 802 is supported3ag(CFM),802.3ah(EFM) and other Ethernet link detection mechanisms;
  • Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication
  • Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand
  • Support IPv4/IPv6 static routing function;
  • Supports multi-port mirroring analysis and service flow-based image analysis.
  • Support static and flexible QinQfunction;
  • Support IPV4/6unicast routing in the policy, support flexible forwarding policy;
  • Supports CLI command line management based on serial port, Telnet, and SSHv2 mode
  • Support RFC1213 SNMP network management;
  • Supports configuration management based on WEB pages;
This image for Image Layouts addon
The switch provides the highest POE bandwidth capacity via cable. It is very suitable for safe transmission of data with high bandwidth, especially video data. CCTV cameras with high resolution are the best option for this infrastructure.
This image for Image Layouts addon
In addition, the switch can be used in the infrastructure of systems that are simultaneously fed from the network, and require POE, and bandwidth above 1 gigabyte and below 10 gigabytes. It is suitable for monitoring and remote control systems where multiple information is sent and received.
Product Specifications:

  • Physical Interface:
10 Gigabit optical port: 6*10 Gigabit optical ports, 10 Gigabit optical port adaptive connection Gigabit optical, type SFP/SFP+/LC;
PoE ports: 24 Gigabit ports with PoE, support IEEE 802.3af/at standard, type RJ45;
Console port: manage serial port, used for command line management, type RS232;

  • Working environment:
Operating temperature: -15C~55C;
Storage temperature: -40C~70C;
Relative humidity: 10%~90%, non-condensing;

  • Power consumption:
Power supply specifications: single AC power supply, fixed 400W power supply;
Input power: AC: input 90~264V, 47~67Hz;
Power consumption of the whole machine: full load power consumption ≤53W, idle power consumption ≤ 25W;

  • Mechanical structure:
Chassis shell: metal shell, air-cooled heat dissipation;
Chassis size: dimensions (length * width * height) (mm) 440 * 290 * 44;
Installation: Standard 19 inch 1U rack mount installation;
