Features:

  • Encoder/Receiver, IP Gateway and IPTV Server in one device
  • 2 separate Web GUI, one for Cards and Gateway, the other for IPTV Server
  • Support uploading TS files directly in Web GUI to broadcast your own channels
  • Support inter-cut feature of a live program, a TS file and a picture
  • Support IP anti-jitter feature for the external IP streams
  • Support downloading Houper IPTV APK directly in the Web GUI
  • Multi-level password control for your system security
  • LCD/Key button for Network-Setting checking
  • Modularized design, max 3 (or 6) cards embedded, a flexible option as per the actual application
This image for Image Layouts addon

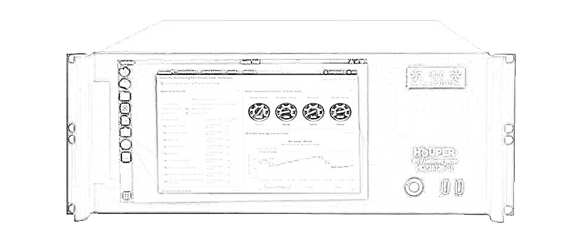

HOP28141 is a flexibly modularized 3U device with the features of Encoder/Receiver, IP Gateway and IPTV Server for the protocol-conversion application andIPTV-system application. It supports max 6 pluggable streamer cards embedded, such as encoder card and tuner card to receive the HDMI signals and tuner signals etc.
This image for Image Layouts addon
It can also convert the input IP streams from the embedded modules and Ethernet ports over SRT, HTTP,UDP, RTP, RTSP, HLSprotocol and TS files into the output IP streams over SRT, HTTP,UDP, RTP, RTSP, HLS and RTMP protocol. It is also integrated with Houper IPTV management software and Streamer cards to make it ideal in an IPTV system, such as hotel, hospital and community.

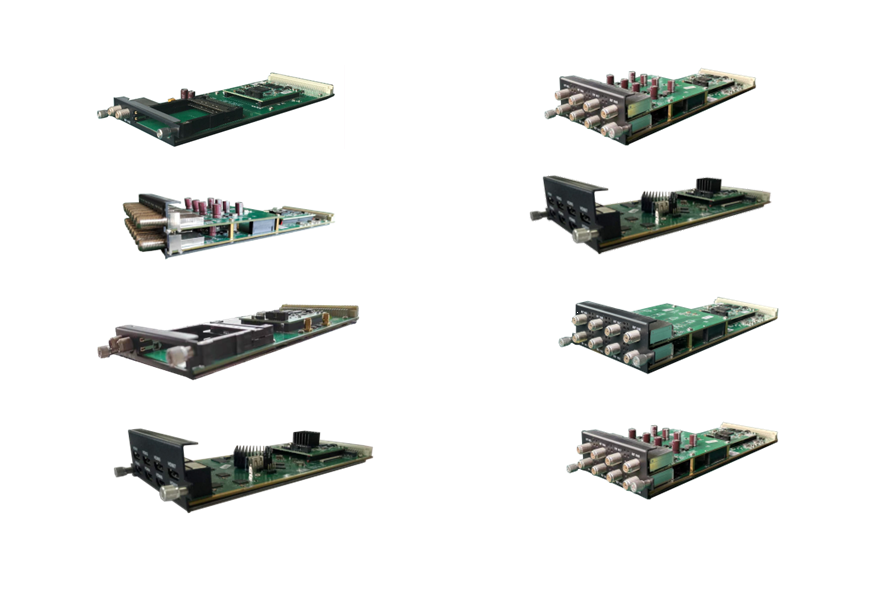

2 Tuner Descrambling Card
4 frequencies Descrambling Card
8 HDMI Encoder Card
8 HDMI Encoder Card-V2
8 FTA DVB-S/S2/S2X Tuner Card
8 FTA DVB-C/T/T2/ISDB-T Multi-Mode Tuner Card
8 FTA DVB-S/S2/S2X Tuner Card-V2

Test sheet IPTV Performance Overview
  • Our system efficiently handles various protocol conversions while maintaining optimal performance. Below are the key metrics for our 3U model:
  • UDP to HTTP: With 150 programs running at 8 Mbps, the system supports up to 600 terminals, achieving a CPU utilization of 82%.
  • UDP to HLS: Supporting 150 programs at 8 Mbps, this conversion can handle 1300 terminals with only 30% CPU utilization, showcasing remarkable efficiency.
  • UDP to SRT: This conversion processes 130 programs at 8 Mbps with a CPU utilization of 75%, ensuring reliable performance even without terminal data.
  • UDP to RTMP: With 150 programs at 8 Mbps, it manages terminal handling efficiently while operating at a CPU utilization of 80%.
These results demonstrate our commitment to delivering high-performance solutions in IPTV systems.
