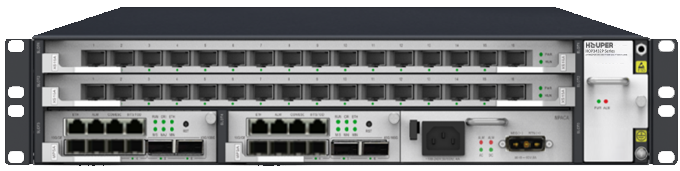

HOP3532P 32*XG(S)PON OLT with 4*10GE and 2*100GE uplink
HOP3532P-32XG(S)PON-4P10GE-2P100GE-OLT
Interface:
MPS: main control board, 4*10GE/GE SFP+, 2*100G QSFP28
GP16A: 16-port GPON line card
XS16A: 16-port XG/XGS PON line card
CS16A: 16-port GPON/XG/XGSPON combo line card
Exchange Capacity: 720Gbps
Packet Forwarding Rate: 535.68 Mpps
Memory: 4G Bytes (main control board) + 4 GBytes (PON board)
Flash: 64 M + 8G Bytes (main control board) + 64 MBytes (PON board)
Management Port: Console port, debugging network port
Standard: Conform to ITU-TG.984/T G.987/G.988 standard
PON:
Wavelength: GPON: 1310nm (upstream) 1490 nm (downstream),
XGSPON: 1270nm (upstream) 1577nm (downstream);
Line Speed: GPON downlink 2.5Gbps, uplink 1.25 Gbps
XGPON downlink 10Gbps, uplink 2.5Gbps;
XGSPON downlink 10Gbps, uplink 10Gbps;
It can be flexibly compatible with any brand of ONT, and can perform batch software upgrades on ONUs
Power Supply:
AC: 100～240V 47/63Hz; DC: 48V;
Modular power supply, optional AC+DC, DC+DC
Power Consumption: 280W
MPS: main control board, 4*10GE/GE SFP+, 2*100G QSFP28
GP16A: 16-port GPON line card
XS16A: 16-port XG/XGS PON line card
CS16A: 16-port GPON/XG/XGSPON combo line card
Exchange Capacity: 720Gbps
Packet Forwarding Rate: 535.68 Mpps
Memory: 4G Bytes (main control board) + 4 GBytes (PON board)
Flash: 64 M + 8G Bytes (main control board) + 64 MBytes (PON board)
Management Port: Console port, debugging network port
Standard: Conform to ITU-TG.984/T G.987/G.988 standard
PON:
Wavelength: GPON: 1310nm (upstream) 1490 nm (downstream),
XGSPON: 1270nm (upstream) 1577nm (downstream);
Line Speed: GPON downlink 2.5Gbps, uplink 1.25 Gbps
XGPON downlink 10Gbps, uplink 2.5Gbps;
XGSPON downlink 10Gbps, uplink 10Gbps;
It can be flexibly compatible with any brand of ONT, and can perform batch software upgrades on ONUs
Power Supply:
AC: 100～240V 47/63Hz; DC: 48V;
Modular power supply, optional AC+DC, DC+DC
Power Consumption: 280W
HOP3432P Series can be widely used in the construction of access network such as FTTH, VPN, government and enterprise park access, campus network access, etc., which provides users with broadband, voice, video, monitoring and other comprehensive service access.
HOP3432P is a chassis-type XG(S)PON/GPON OLT device independently developed by our company, which can provide highly integrated and large-capacity integrated access for operators, ISPs, enterprises and park applications.
Safety
Support user hierarchical management and password protection
Support IEEE 802.1X authentication/centralized MAC address authentication
Support Radius&TACACS+ authentication
Support MAC address learning number limit, support black hole MAC function
Support SSH 2.0, providing a secure encrypted channel for user login
Support SNMP v3 encrypted management
Support port isolation, hardware isolation of packets between ports
Support broadcast packet rate suppression
Support IP Source Guard to automatically create IP+MAC+port+VLAN binding table, and support manual binding table items
Support DHCP Option82 and PPPoE+
Support ARP flood attack automatic suppression and ARP spoofing protection
Support the prevention of various DOS attacks and virus attacks against the CPU on the control layer
Support user hierarchical management and password protection
Support IEEE 802.1X authentication/centralized MAC address authentication
Support Radius&TACACS+ authentication
Support MAC address learning number limit, support black hole MAC function
Support SSH 2.0, providing a secure encrypted channel for user login
Support SNMP v3 encrypted management
Support port isolation, hardware isolation of packets between ports
Support broadcast packet rate suppression
Support IP Source Guard to automatically create IP+MAC+port+VLAN binding table, and support manual binding table items
Support DHCP Option82 and PPPoE+
Support ARP flood attack automatic suppression and ARP spoofing protection
Support the prevention of various DOS attacks and virus attacks against the CPU on the control layer
VLAN
Support 4K VLAN 802.1Q
Support VLAN based on port, MAC and protocol
Support dual-Tag VLAN function, port-based static QinQ and flexible QinQ functions
PON
Splitting ratio: 1:128 (GPON, XG-PON, XGS-PON)
Support B+/C+/C++ GPON optical module
Support N1/N2/E2 XG-PON or XGS-PON optical module
Support N1/B+, N2/C+, E2/D Combo optical modules
SN / SN + Password ONU authentication
Support FEC
ONU optical power monitoring
Rogue ONU detection
Layer 2 Function
Support STP/RSTP/MSTP
Support ERPS Ethernet ring network protection protocol
Support Loopback-detection port loopback detection
Layer 3Function
Support ARP learning and aging
Support for creating VLAN Layer 3 interfaces and configuring static IPv4/IPv6 addresses
Support static route configuration
Support RIP/OSPF protocol function
Support VRRP protocol function
ACL
Support standard and extended ACL
Support time range (Time Range) ACL policy
Provide flow classification and flow definition based on IP packet header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc.
QoS
Support flow speed limit function based on custom business flow
Supports packet mirroring and packet redirection based on custom service flows
Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability
Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR
Support 4K VLAN 802.1Q
Support VLAN based on port, MAC and protocol
Support dual-Tag VLAN function, port-based static QinQ and flexible QinQ functions
PON
Splitting ratio: 1:128 (GPON, XG-PON, XGS-PON)
Support B+/C+/C++ GPON optical module
Support N1/N2/E2 XG-PON or XGS-PON optical module
Support N1/B+, N2/C+, E2/D Combo optical modules
SN / SN + Password ONU authentication
Support FEC
ONU optical power monitoring
Rogue ONU detection
Layer 2 Function
Support STP/RSTP/MSTP
Support ERPS Ethernet ring network protection protocol
Support Loopback-detection port loopback detection
Layer 3Function
Support ARP learning and aging
Support for creating VLAN Layer 3 interfaces and configuring static IPv4/IPv6 addresses
Support static route configuration
Support RIP/OSPF protocol function
Support VRRP protocol function
ACL
Support standard and extended ACL
Support time range (Time Range) ACL policy
Provide flow classification and flow definition based on IP packet header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc.
QoS
Support flow speed limit function based on custom business flow
Supports packet mirroring and packet redirection based on custom service flows
Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability
Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR
