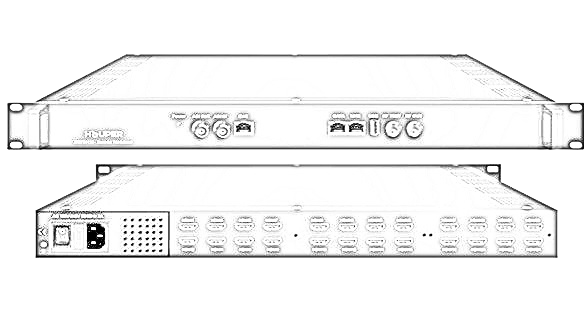

HOP28118-24 HDMI Encoder Modulator DVBT

HOP28118-24HDMI-Encoder-Modulator-DVBT

Features:

  • 8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding
  • 1 ASI input for re-mux
  • 1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in the device and play back the content in an easy way; file system FAT 32. )
  • 128 IP input over UDP and RTP via GE port
  • Each carrier out channel process maximum 32 IP from the GE port(UDP&RTP protocol)
  • MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
  • Support 12 groups multiplexing/DVB-C modulating
  • Support 8 (or 16) groups multiplexing/DVB-T modulating---Optional
  • Support 8 groups multiplexing/ATSC modulating---Optional
  • Support 6 (or 16) groups multiplexing/ISDB-T modulating---Optional
  • Support 1 ASI out as mirror of one of RF output carriers---Optional
  • Support 12 MPTS IP output over UDP, RTP/RTSP –DVB-C RF out
  • Support 8 (or 16) MPTS IP output over UDP, RTP/RTSP-- DVB-T RF out
  • Support 8 MPTS IP output over UDP, RTP/RTSP-- ATSC RF out
  • Support 6 (or 16) MPTS IP output over UDP, RTP/RTSP-- ISDB-T RF out
  • Support LOGO, Caption and QR code insertion(Language Supported)
  • Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
  • Control via web management, and easy updates via web
This image for Image Layouts addon
HOP28118 is a professional and high integration device which includes encoding, multiplexing, and modulation. It supports 8/16/24 HDMI inputs, 1 ASI input, 1 USB payer input and 128 IP inputs via the GE port.
This image for Image Layouts addon
It also supports DVB-C RF out with 12 non-adjacent carries or DVB-T/ATSC RF out with 8 non-adjacent carriers(or 16 carriers optional for DVB-T), or ISDB-T RF out with 6/16 non-adjacent carriers, and supports 12/8/6/16 MPTS as mirror of 12/8/6/16 carriers through the GE port and 1 ASI out as mirror of one of the carriers. This full function device makes it ideal for a small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Input
8/16/24 HDMI inputs for option
1 ASI in for re-mux
1 USB Player input for re-mux
128 IP input over UDP and RTP from GE port

Video
Encoding MPEG-4 AVC/H.264
Bit-rate 1Mbps~13Mbps each channel
Rate Control CBR/VBR
GOP Structure IP…P (P Frame adjustment, without B Frame )

Audio
Encoding MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
Sampling rate 48KHz
Resolution 24-bit
Audio Gain 0-255 Adjustable

Multiplexing
Maximum PID Remapping 255 input per channel

System function
Network management (WEB)
Ethernet software upgrade
