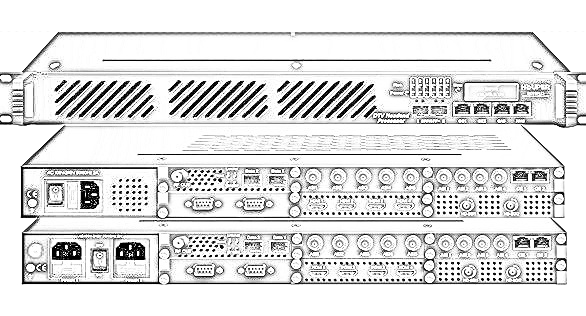

HOP28123-DTV Head-end Processor

HOP28123-Head-end-Processor
Features:

Support flexible combination of different type of modules
Support up to 6 modules
Support IP input/output, RJ45/SFP interface, Unicast/Multicast
Support Web management, Updates via web
Single or Redundancy power supply for option
This image for Image Layouts addon
HOP28123 DTV head-end processor is the new generation of intelligent headend processing equipment. This 1-U case comes with 6 independent module slots. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing and the combination of all these functions.
This image for Image Layouts addon
It supports multiple input and output interfaces and signal formats. With its powerful performance and low cost, HOP28123 is especially adequate for the new generation CATV system.
  1. 4 CVBS/SDI Encoding Module
  2. 4 CVBS Encoding Module
  3. 8 CVBS(or 8 audio) Encoding Module
  4. 2 HDMI/SDI Encoding/Transcoding Module
  5. 8 HDMI Encoding Module
  6. 4 HDMI/SDI Encoding Module
  7. 4 HDMI/SDI Encoding Module
  8. 2 Tuner Descrambling Module
  9. 4 FTA Tuner Module
  10. 8 FTA Tuner Module
  11. 4 frequencies Descrambling Module
  12. 8 FTA Tuner Module
  13. 4 ASI/IP Multiplexing Module
  14. 5 ASI Multiplexing Module
  15. IP De-Multiplexing Module
  16. ASI/IP Mux-Scrambler Module
  17. ASI TS Switch Module
  18. 16/32 QAM Modulating Module
  19. 48 QAM Modulating Module
  20. 8/16 ISDB-Tb Modulating Module
  21. 8/16 DVB-T Modulating Module
  22. 8 ATSC Modulating Module
  23. 2 HD-SDI Decoding Module
  24. 4 HDMI Decoding Module
