HOP28109-HDMI-IP-Encoder

HOP28109-Multi Channel Encoder
Features:

  • Support 8/16/24 HDMI inputs, with 8/16/24 SPTS output (each encoder module, only support STPS without “Null Packets”, NO MPTS), max 24 HDMI inputs
  • MPEG4 AVC/H.264 video encoding format
  • MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
  • Support IP Output over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP and HLS
  • Support QR code, LOGO, caption insertion(Language Supported:中文,English, العربية, ไทย,हिन्दी, руская,اردو and more languages …)
  • Control via web management, and easy updates via web
This image for Image Layouts addon

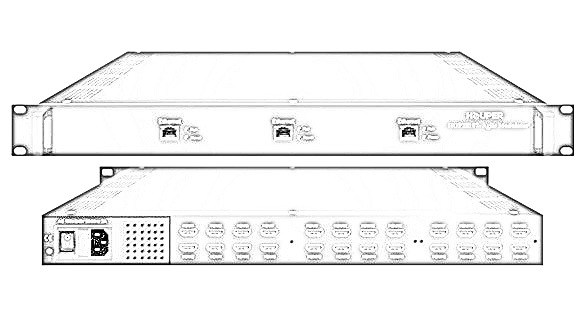

HOP28109 network encoder (Network Encoder Processor) is an encoding device for IP broadcasting. It is equipped with 8/16/24 HDMI channels input with MPEG-4 AVC/H.264 video encoding and LC-AAC or HE-AAC audio encoding. The signals source could be from STB, PC, TV and etc.
This image for Image Layouts addon
It can transfer the live program through the internet/LAN, and gives IP out over UDP (Unicast/Multicast), SRT, RTSP, RTMP, HTTP and HLS, and the output signals are to be received by PC, phone and other mobile terminals. HOP28109 you access your IP STB, PC or TV anywhere to watch your programs.
Input
8/16/24 HDMI inputs

Video
input 1920×1080_60P, 1920×1080_60i,1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P,720 x 576_50i,720 x 480_60i
Output 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P,720 x 576_25P, 720 x 480_30P

Encoding MPEG-4 AVC/H.264
Bit-rate 1~13Mbps each channel
Rate Control CBR/VBR
GOP Structure IP…P (P Frame adjustment, without B Frame )

Audio
Encoding MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
Sampling rate 48KHz
Resolution 24-bit
Audio Gain 0-255 Adjustable

Stream output
IP out over UDP (Unicast/Multicast),SRT, RTP,RTSP, RTMP, HTTP, HLS (RJ45, 1000M ) (8 HDMI inputs with 8 SPTS for each encoder board)

System function
Network management(WEB)
Ethernet software upgrade
