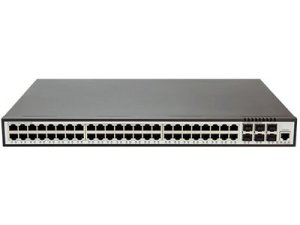

HOP5710-54TX - 48 ports 1G - 6 ports 10G uplink switch

HOP5710-54TX-48P1G-6P10G

HOP5710-54TX switch has 48 ports with 1G capacity and 6 ports with 10G capacity. The switch is manufactured by HOUPER Company. It is one of HOP5710 series switches. With unique performance and high capacity, the switch can properly play the role of routing and switching in your network. This series of switches has an extremely powerful and low-power processor and provides you with a secure connection to the network. It has a redundant power and hot blog and has very low power consumption.
  • Specifications :
  • 48Gigabit ports,6*10 Gigabit ports,10 Gigabit ports can be adapted to Gigabit;
  • Ultra-high switching capacity, support full port wire-speed forwarding performance;
  • Strong Layer 3 access switch, supporting full-port hardware Layer 3 wire-speed forwarding performance;
  • High-performance low-power network processor, support for green Ethernet line sleep capability, low device power consumption;
  • Support IPv4/IPv6 dual-stack platform, support RIP/OSPF/RIPng/OSPFv3/PIM and other routing protocols
  • Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols;
  • Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions
  • Support Ethernet OAM 802.3ag(CFM),802.3ah(EFM) and other Ethernet link detection mechanisms
  • Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication
  • Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand
  • Support IPv4/IPv6 static routing function;
  • Supports multi-port mirroring analysis and service flow-based image analysis.
  • Support static and flexible QinQfunction;
  • Support IPV4/6unicast routing in the policy, support flexible forwardingpolicy;
  • Supports CLI command line management based on serial port, Telnet, and SSHv2 mode
  • Support RFC1213 SNMP network management;
  • Supports configuration management based on WEB pages;
This image for Image Layouts addon
The switch is suitable for equipment that needs one-gigabit bandwidth. Among others, we can point out the computers of educational centers or the systems of a commercial company. Finally, all information will be placed on ten-gigabyte bandwidth for transmission in the uplink.
This image for Image Layouts addon
In addition, the switch is used for transmitting voice information on the VOIP network, public centers for connecting modems and wireless routers in airports, subways, commercial and office centers.
Product Specifications:

  • Physical Interface:
10 Gigabit optical port: 6 10 Gigabit optical ports, 10 Gigabit optical port adaptive connection Gigabit optical, type SFP/SFP+/LC;
Gigabit port: 48 gigabit ports, gigabit ports can be adaptive 10/100/1000M, type RJ45;
Console port: manage serial port, used for command line management, type RS232;

  • Working environment:
Operating temperature: -15C~55C;
Storage temperature: -40C~70C;
Relative humidity: 10%~90%, non-condensing;

  • Power consumption:
Power supply specifications: Dual power supply, AC optional
Input power: AC: input 90~264V, 47~67Hz;
Power consumption of the whole machine: full load power consumption ≤53W, idle power
consumption ≤ 25W;

  • Mechanical structure:
Chassis shell: metal shell, air-cooled heat dissipation;
Chassis size: dimensions (length * width * height) (mm) 440 * 290 * 44;
Installation: Standard 19 inch 1U rackmount installation;
