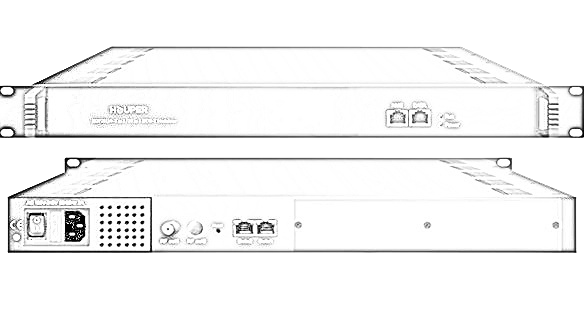

HOP28114-16 input ISDB-T Modulator
HOP28114-16-ISDB-T-Modulator
Features:
- 3 GE ports for data input and output
- Max 840Mbps for each GE input
- Supports accurate PCR adjusting
- Supports CA filtering, PID remapping and PSI/SI editing
- Supports up to 256 PIDS remapping per channel
- Support 8 IP output through Data1 & Data2 over UDP/RTP/RTSP--Version I
- Support 16 IP output through Data1 & Data2 over UDP/RTP/RTSP--Version II
- 8 (or 16) non-adjacent carriers output, compliant to ISDB-Tb (ARIB STD-B31)
- Support Web-based Network management
HOP28114 8in1/16in1 ISDB-T modulator is the latest generational Mux-modulating device developed by HOUPER. It has 8 (or16) multiplexing channels and ISDB-T modulating channels, and supports maximum 512 IP input through the 3 GE ports and 8 (or16) ISDB-T non-adjacent carriers (50MHz~960MHz) output through the RF output interface.
The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Input
Max 512 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional)
Transport Protocol : TS over UDP/RTP, unicast and multicast, IGMP V2/V3
Transmission Rate : Max 840Mbps for each GE input
Mux
Input Channel 512 IP streams
Output Channel 8 (or 16)
Max PIDs 256 per channel
PID remapping (auto/manually optional)
PCR accurate adjusting
PSI/SI table automatically generating
Standard ARIB STD-B31
Bandwidth 6M
Constellation QPSK, 16QAM, 64QAM
Guard Interval 1/32, 1/16, 1/8, 1/4
Transmission Mode 2K, 4K, 8K
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
MER ≥40dB
RF frequency 50~960MHz, 1KHz step
RF output level -20dBm~+10dBm(87~117dbµV), 0.1dB stepping
Output Channel 16 non-adjacent carriers output - Version II
RF Output
Interface 1 F typed port, 75Ω impedance, ACLR -50 dBc
